Configuring multiple DHCP reservations [fixed IPs] for the same host with a Unifi Security Gateway

I just picked up some new networking gear, so this will be the first of a multi-part blog post about my learnings configuring Unifi gear.

One issue I noticed right away was that it is not possible, via CLI nor GUI, to configure fixed IP address for a host that relies on more than 1 of the configured networks/VLANs. Since I have a home server (user VLAN) that is also hosting the controller softare (management VLAN) and also acts as a gateway for sending packets over its VPN interface (VPN VLAN), this was necessary for me.

It is possible but requires a bit of manual configuration using a config.gateway.json file. First, if you have configured a fixed IP for the host, unset it.

Then, merge in the DHCP mappings in your config.gateway.json file:

{
  "service":{
    "dhcp-server":{
      "shared-network-name":{
        "LAN_192.168.1.0-24":{
          "subnet":{
            "192.168.1.0/24":{
              "static-mapping":{
                "00-aa-22-bb-44-cc.mgmt":{
                  "ip-address":"192.168.1.5",
                  "mac-address":"00:aa:22:bb:44:cc"
                }
              }
            }
          }
        },
        "LAN_Users_192.168.10.0-24":{
          "subnet":{
            "192.168.10.0/24":{
              "static-mapping":{
                "00-aa-22-bb-44-cc.users":{
                  "ip-address":"192.168.10.5",
                  "mac-address":"00:aa:22:bb:44:cc"
                }
              }
            }
          }
        },
        "LAN_VPN_192.168.20.0-24":{
          "subnet":{
            "192.168.20.0/24":{
              "static-mapping":{
                "00-aa-22-bb-44-cc.vpn":{
                  "ip-address":"192.168.20.5",
                  "mac-address":"00:aa:22:bb:44:cc"
                }
              }
            }
          }
        }
      }
    }
  }
}

The key here is that the string child of the static-mapping node must be unique. Unifi will put in the MAC separated by dashes by default, so above I just tacked on the VLAN name to each name.

Re-provision your USG and you should be good to go. If you run into trouble an want to debug DHCP req/ack sequences, setup verbose logging:

configure
set service dhcp-server global-parameters 'log-facility local2;'
set system syslog file dhcpd facility local2 level debug
set system syslog file dhcpd archive files 5
set system syslog file dhcpd archive size 5000
commit

You'll find the DHCP log under /var/log/user/dhcpd. Simply reboot to go back to normal logging.

Connecting Azure IoT Hub to Azure Functions and other Event-Hub compatible services

IoT Hub is a great, scalable way to manage your IoT devices. Did you know you can trigger an Azure Function when receiving a device-to-cloud message the same way you can for an Event Hub message?

Building the Event Hub connection string

Every IoT hub offers a read-only Event Hub-compatible endpoint that can be used with normal Event Hub consumers. This includes Azure Functions, which provides an Event Hub trigger.

You can view your IoT Hub's Event Hub-compatible by opening your IoT Hub resource in the Azure portal and navigating to the Endpoints blade, then clicking the Events (messages/events) endpoint. You will find the Event Hub-compatible name, and Event Hub-compatible endpoint (in the format of sb://iothub-ns-foo.servicebus.windows.net/) - keep note of these for later.

IoT Hub - Access Policy

Next, navigate to the IoT hub's Shared Access Policies blade. You will need to either use one of the existing policies or add your own, and the policy you choose must have the Service connect permission. Click any policy to view its associated primary key.

IoT Hub - Access Policy

Now, we can use these four pieces of information to construct an Event Hub connection string, which follows the format Endpoint=sb://EH_COMPATIBLE_ENDPOINT;EntityPath=EH_COMPATIBLE_NAME;SharedAccessKeyNa‌​me=IOTHUB_POLICY_NAME;Share‌​dAccessKey=IOTHUB_POLICY_KEY.

Configuring Azure Functions

We will now setup an Azure Function with a trigger using the Event Hub-compatible information.

Open the Azure Function resource and switch to the Integrate tab. Add a new trigger and choose Event Hub, which will reveal the following settings page:

Azure Functions - Trigger configuration

Enter the Event Hub-compatible name collected from IoT Hub earlier under Event Hub name and then press new to enter the Event Hub connection string derived earlier.

Azure Functions - Configure connection string

Lastly, we need to add code under the Develop tab with a parameter that matches the Event parameter name field, so use the following:

using System;

public static void Run(string myEventHubMessage, TraceWriter log)
{
    log.Info($"C# Queue trigger function processed: {myEventHubMessage}");
}

Testing the connection

Under the Function's Develop tab, click the Logs button from the toolbar to open the execution log. Next, send a cloud-to-device message -- if you haven't setup a device, simple_sample_device.js from the IoT Hub Node.js SDK does nicely.

After sending your message, you should see that your Function triggered successfully.

What about in ARM templates?

This manual setup is fine for testing, but what about automation for when moving to production?

ARM templates provide a reference() function that resolves a resource's runtime state. It's perfect for obtaining the Event Hub-compatible name that was provisioned as it was created:

    ...
    "parameters": {
        "iotHubName": {
            "defaultValue": "iothub2functions",
            "type": "String"
        }
    },
    "variables": {
        "iotHubApiVersion": "2016-02-03",
        "iotHubPolicyName": "service"
    },
    "outputs": {
        "eventHubConnectionString": {
            "type": "string",
            "value": "[concat('Endpoint=',reference(resourceId('Microsoft.Devices/IoTHubs',parameters('iotHubName'))).eventHubEndpoints.events.endpoint,';EntityPath=',reference(resourceId('Microsoft.Devices/IoTHubs',parameters('iotHubName'))).eventHubEndpoints.events.path,';SharedAccessKeyName=',variables('iotHubPolicyName'),';SharedAccessKey=',listKeys(resourceId('Microsoft.Devices/IotHubs/Iothubkeys', parameters('iotHubName'),variables('iotHubPolicyName')), variables('iotHubApiVersion')).primaryKey)]"
        }
    },
    ...

Getting started with the Skype for Business SDKs

The Skype for Business App SDK and Skype Web SDK are great ways to build the unified communication experience provided by the Skype for Business (previously Lync) server directly into web and mobile applications and deliver new interactive and collaborative experiences into your application.

If you're getting started with the Skype SDKs and/or Office 365 for the first time, the documentation available on the The Skype Developer Platform is a great place to start, but there are a number of steps you'll need to work through before coding.

In this post, I'll detail how to get setup with Skype for Business Online (Office 365) using a developer tenant and get coding as quickly as possible. As well, this is a good time to note that that at this time, some features of the SDKs are in preview. More features are coming out with every release!

Good to know: compatibility & platform features

As of writing (Jan. 2017), both the App SDK and Web SDK support connecting to on-premise and online (via Office 365) deployments.

However, at this time there are some important distinctions between the capabilities of the SDKs on the two platforms and in compatibility with O365 vs on-premise for meeting join. These differences will be rounded out in future SDK releases (for details on roadmap, see the Andrew Bybee's Ignite 2016 talk).

App SDK

The App SDK is available for iOS and Android apps, and supports the unauthenticated workflow. Meeting join, IM and audio-video communication is possible but done anonymously, using only a meeting link. There is no opportunity for a user to sign-in, so tasks like contact management are not available.

Web SDK

Contrary to the App SDK, the Web SDK has better support for authenticated workflows. Contact management, 1:1 conversations and more is available from the Web SDK after the user has authenticated. Anonymous meeting join, where the end-user joins a conference without signing in, is available but only when connecting to on-premise Skype for Business deployments at this time.

It's also important to note that both Chrome and Firefox have announced the deprecation of NPAPI plugins, which prevents the use of the Skype for Business Web App Plug-In. As such, audio-video functionality will be limited in Chrome and Firefox at this time.

IE11 and Safari both work with the web plug-in, and Edge supports A/V calling without any plugins via its built-in ORTC stack.

Setup an Office developer tenant

In order to get started, you'll need to be an administrator on Office 365 tenant and have 2-3 users that are licensed with Skype for Business. If you do not already have such an account, sign up at dev.office.com/devprogram to obtain a free Office developer account.

Once your account is activated, visit portal.office.com, click the Admin tile, then add 2-3 users and assign them a developer license.

App SDK

If you intent to build a mobile app, you are now ready to go - all you need is your app and a meeting link! Check out the meeting join samples for Android and iOS, and the App SDK documentation

You can generate a meeting link using the Skype for Business integration with Outlook, the desktop clients or the Lync Web Scheduler. To create them programtically, use the UCWA API. Meeting links follow the format https://meet.lync.com/tenant_name/organizer_username/meeting_id.

Web SDK

Because the Web SDK supports authenticated workflows, it requires some additional setup in order to authenticate users against Azure AD.

Creating an Azure AD Application

Registering an application will allow the Web SDK to perform OAuth authentication aginst users in an Azure AD directory. Previously, managing Azure AD applications required delving into the classic portal (instructions here) but fortunately Azure AD management is now available (in preview) in the new portal:

  1. Go to portal.azure.com
  2. Select Azure Active Directory > App registrations > Add
    Azure Portal - AAD
  3. Choose a human-readable name for your application and a unique sign-on URL. If unsure, use something like https://tenantID.onmicrosoft.com/appname - you can change it later once you move to production. Leave the type as Web app / API.

    Azure Portal - AAD - Create

  4. Select the Manifest button to open the manifest editor:

    Azure Portal - AAD - Manage

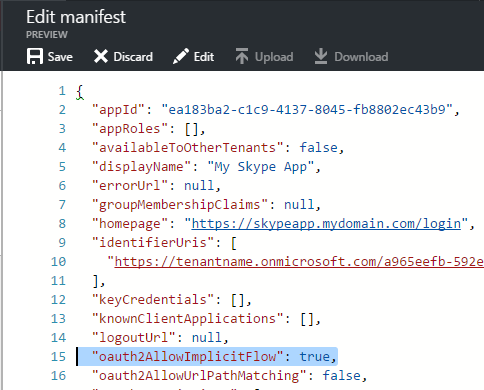

    Then set oauth2AllowImplicitFlow is set to true:

    Azure Portal - AAD - Manifest

  5. Next, navigate to the application's Properties blade and change Multi-tenanted to Yes. This will ensure that people outside of your Office tenant can use this application.

    Enabling multi-tenantancy on the application

  6. Navigate to the Reply URLs blade and enter the URLs at which your application will be hosted. Note that while developing your application, adding http://localhost is convinient but be aware that it means anyone who stands up their own site on http://localhost and knows your client ID can authenticate against your application. Tread carefully!

  7. Navigate to the Required Permissions blade and add delegated permissions for Skype for Business Online:

    Azure Portal - AAD - Permissions

    Azure Portal - AAD - Permissions 2

That's it - your application is now configured. However before it can authenticate users with the Web SDK, you must consent to the application using an admin user from your Office tenant. Open a In-Private/Incognito browsing window and visit this URL, replacing both CLIENT_ID and REDIRECT_URI as configured above: https://login.microsoftonline.com/common/oauth2/authorize?response_type=id_token&client_id=CLIENT_ID&redirect_uri=https://REDIRECT_URI&response_mode=form_post&nonce=...&resource=https://webdir.online.lync.com&prompt=admin_consent

Now check out the Web SDK documentation try running the Web SDK samples, or use the interactive Web SDK sample.

Changes coming in 2017

I'm writing this quick post at the end of 2016 to wish everyone happy holidays and let you know about some changes coming in 2017.

Employment

Earlier this year, I stopped working for my company Diffingo Solutions Inc. and am excited to say that I now work at Microsoft, as can be seen on my github profile (@stewartadam). I think that the direction Microsoft has taken in the past two years has been very positive and I'm exicted to see what the future brings.

Of course, there's the mandatory note: the opinions on this blog are my own and may not represent those of my employer. However, given the technologies I interact with on a day-to-day basis, you may notice an increase in blog posts about technologies owned by my employer ;)

Comments are now disabled

As well, due to an influx of spam comments that are bypassing CAPTCHA and other automated anti-spam methods, I have disabled comments on my blog. I expect this will be the case for the forseeable future.

New blog style coming

I am likely going to convert my Drupal-based blog to one based on Markdown or other static rendering. Drupal has been great to me, but Markdown is so much easier to author in and requires 0 maintenance. As well, the rate at which I can author content has slowed so Drupal's original use case for me (maintaining Views-based lists of the various categories of howtos I was writing) no longer applies.

Using OpenVPN connection to play games while abroad using Stream's In-Home Streaming

Introduction

Steam has a great (albeit, a little glitchy) feature called In-Home Streaming that allows you to stream games from running Steam clients on your local network, effectively turning your gaming PC into a little render farm and allowing you to play from low-power devices like a laptop.

With the help of OpenVPN, it's possible to enable playback of games from your home PC seamlessly while away from your home network too, provided you have a decent Internet connection. This tutorial will demonstrate how to setup an OpenVPN server on Fedora 23 with a bridged network connection in let you VPN into your home network and stream Steam games from PCs on your LAN.

To make this work, we need to use OpenVPN in bridged mode with a tap network device. Bridging the ethernet and tap interfaces will allow VPN clients to receive an IP address on the LAN's subnet.

The default (and simpler) tun devices are not bridged, and function on a separate subnet - something which will break in-home streaming. We need to be on the same LAN so that the UDP broadcast packets sent by Steam for auto-discovery will be received by the VPN clients.

Creating a network bridge

Let's start by setting up the network bridge with NetworkManager and enslaving the ethernet interface. Check the name of your active network interface by running nmcli d, and replace the value ofETH_IFACE with that name below:

ETH_IFACE=enp3s0
nmcli con add type bridge ifname br0
nmcli c modify bridge-br0 bridge.stp no
nmcli con add type bridge-slave ifname $ETH_IFACE master bridge-br0
nmcli c up "bridge-slave-${ETH_IFACE}"
nmcli c up bridge-br0

Installing the OpenVPN server

Next, in order to run an OpenVPN server, one needs to set up a certificate authority (CA) signs client certificates and authorizes them for login. In our case, we'll be using password authentication (for convenience) -- but OpenVPN still wants a CA setup and the server's certificate signed. Let's set up the CA for the OpenVPN server:

dnf install easy-rsa
cp -a /usr/share/easy-rsa/3 /root/openvpn-bridged-rsa
cd /root/openvpn-bridged-rsa
./easyrsa init-pki
./easyrsa build-ca
# Enter the CA password, then accept the defaults

Now we need to create and sign the certificate for the server (set the value of SERVER_ALIAS to an alias of your choice):

SERVER_ALIAS=homelab
./easyrsa gen-dh
./easyrsa gen-req $SERVER_ALIAS nopass
./easyrsa sign-req server $SERVER_ALIAS
# Enter 'yes', then CA password

Finally, we copy the keys and certificates to a dedicated folder for OpenVPN:

mkdir /etc/openvpn/keys
chmod 700 /etc/openvpn/keys
cp pki/ca.crt pki/dh.pem "pki/issued/${SERVER_ALIAS}.crt" "pki/private/${SERVER_ALIAS}.key" /etc/openvpn/keys

We are now ready to configure OpenVPN. Set the variables based on your LAN's configuration (see ifconfig $ETH_IFACE output if unsure):

BRIDGE_IP=192.168.1.1
NETMASK=255.255.255.0
IP_POOL_START=192.168.1.241
IP_POOL_END=192.168.1.254

dnf install openvpn
firewall-cmd --permanent --add-service openvpn
firewall-cmd --reload

cat << EOF > /etc/openvpn/bridged.conf
port 1194
dev tap0
tls-server
ca /etc/openvpn/keys/ca.crt
cert /etc/openvpn/keys/$SERVER_ALIAS.crt
key /etc/openvpn/keys/$SERVER_ALIAS.key # This file should be kept secret
dh /etc/openvpn/keys/dh.pem
server-bridge $BRIDGE_IP $NETMASK $IP_POOL_START $IP_POOL_END

# Password authentication
client-cert-not-required
username-as-common-name
plugin /usr/lib64/openvpn/plugins/openvpn-plugin-auth-pam.so openvpn

# Allow multiple client connections from the same user
duplicate-cn

# Client should attempt reconnection on link failure.
keepalive 10 120

# The server doesn't need root privileges
user openvpn
group openvpn

# Logging levels & prevent repeated messages
verb 4
mute 20
log-append /var/log/openvpn.log
status /var/log/openvpn-status.log

# Set some other options
comp-lzo
persist-key
persist-tun
push persist-key
push persist-tun

# Brings up tap0 since NetworkManager won't do it automatically (yet?)
script-security 2
up up.sh
EOF

OpenVPN will create the tap0 interface automatically when the OpenVPN server starts. NetworkManager is able to enslave the interface to the bridge, but won't bring tap0 online. For that, we install a simple script:

cat << EOF > /etc/openvpn/up.sh
#!/bin/bash
br=br0
dev=\$1
mtu=\$2
link_mtu=\$3
local_ip=\$4
local_netmask=\$5

# This should be done by NetworkManager... but it can't hurt.
/sbin/brctl addif \$br \$dev

# NetworkManager appears to be capable of enslaving tap0 to the bridge automatically, but won't bring up the interface.
/sbin/ifconfig \$dev 0.0.0.0 promisc up
EOF
chmod +x /etc/openvpn/up.sh

Next, we need to create the PAM authentication configuration file for the OpenVPN password plugin:

cat << EOF > /etc/pam.d/openvpn
#%PAM-1.0
auth       substack     system-auth
auth       include      postlogin
auth       requisite    pam_succeed_if.so user ingroup openvpn_pw quiet
account    required     pam_nologin.so
account    include      system-auth
password   include      system-auth
EOF

This configuration file requires that the users logging in be a member of the openvpn_pw group. You can adjust the file as you see fit.

Finally open the OpenVPN port in the firewall and start the service:

firewall-cmd --permanent --add-service openvpn
firewall-cmd --reload
systemctl enable openvpn@bridged
systemctl start openvpn@bridged

Configure the firewall

By default, packets are filtered through iptables which can cause issues, as packets won't freely through between the interfaces. We can disable that behavior:

cat << EOF > /etc/modules-load.d/bridge.conf
br_netfilter
EOF

cat << EOF > /etc/sysctl.d/bridge.conf
net.bridge.bridge-nf-call-ip6tables=0
net.bridge.bridge-nf-call-iptables=0
net.bridge.bridge-nf-call-arptables=0
EOF
sysctl -p /etc/sysctl.d/bridge.conf

cat << EOF > /etc/udev/rules.d/99-bridge.rules
ACTION=="add", SUBSYSTEM=="module", KERNEL=="br_netfilter", RUN+="/sbin/sysctl -p /etc/sysctl.d/bridge.conf"
EOF

Note that I assume that net.ipv4.ip_forward=1 (having libvirt seems to configure this automatically). If not, you'll want to tune the sysctl parameter net.ipv4.ip_forward to a value of 1.

OpenVPN client configuration

That's it! Send a copy of /etc/openvpn/keys/ca.crt on the server to your clients, and you should now be able to connect to your OpenVPN server using this very simple client configuration (don't forget to replace your.server.fqdn with your server's IP address or FQDN):

client
dev tap
proto udp
remote your.server.fqdn 1194
resolv-retry infinite
nobind
persist-key
persist-tun
ca ca.crt
auth-user-pass
comp-lzo
verb 3
mute 20

Once connected, you should be able to ping any machine on the LAN as well as fire up Stream for a remote gaming session.

Appendix A: Steam on OS X

Small note, if you're running the Steam client on OS X there's a bug where the client only sends its UDP broadcast packets for in-home streaming discovery on the machine's primary (i.e. Ethernet or Wi-FI) interface. This nifty command captures those and re-broadcasts them over the VPN's interface (once again, substitute the value of BROADCAST_ADDR per your LAN settings):

BROADCAST_ADDR=192.168.1.255
sudo tshark -T fields -e data -l 'udp and dst port 27036' | script -q /dev/null xxd -r -p | socat - UDP-DATAGRAM:${BROADCAST_ADDR}:27036,broadcast

Special thanks to Larry Land for pointing that out in his blog post Run your own high-end cloud gaming service on EC2 (which is awesome and deserves a read, by the way).

The above command requires the Wireshark and socat utilities to be installed, which you can grab using homebrew:

brew install wireshark socat

and if you don't know your subnet's broadcast address, verify it with:

ifconfig tap0 | grep broadcast

Appendix B: Troubleshooting tips

Whenever possible, I like to use the most modern tooling available. This tends to bite me because documentation might not be as good or the feature set in the replacement tools might be lacking compared to the older tried and true tooling, but I try to always look forward. 'new' tooling like systemd, NetworkManager and firewalld might be rough around the edges, but I like modern feature set and consistency they bring. Most importantly, using them (instead of dropping various custom shell scripts here and there) feels a lot less like my server is held together with glue, which I like.

While trying different configurations, I discovered a few tricks or debugging commands that proved very useful to me - particularly while migrating commands from online resources intended for the older tooling to the tools mentioned above. Hopefully, you'll find them useful too!

It's always the firewall

The blame for most of the issues you will experience generally fall under firewall or routing issues.

First steps in testing should always be disabling the firewall (systemctl stop firewalld) and if that doesn't fix it, then move to checking the routes (route -n or netstat -rn).
If you've identified the firewall is to blame, re-enable it and identifying the root cause by adjusting your configuration while listening for packets to see when packets start flowing again.

Listening for packets

This will be your most used tool. If things don't go as expected, listen on each of the tap0 (client), tap0 (server) and br0 (server) interfaces and then generate some traffic to see how far the packets:

tcpdump -i IFNAME PATTERN

where PATTERN can select for hosts, ports or traffic type. In this case, a particular favorite of mine was icmp or udp port 27036 as this let me test by trying to ping a machine on the LAN from the VPN client, as well as see if the Steam UDP traffic was making it in/out.

Send UDP traffic

The iperf utility can be used to test if UDP traffic makes it to the OpenVPN server (run iperf -c server.ip -u -T 32 -t 3 -i 1 -p 27036) from the OpenVPN clients/LAN machines (run iperf -s -u -i 1 -p 27036).

Changing the zone of an interface

firewalld has different 'zones', each with different rules (see firewall-cmd --list-all-zones). Interfaces will have the rules from the default zone applied to them unless otherwise configured, which you can do as follows:

firewall-cmd --permanent --change-interface=IFNAME --zone=NEW_ZONE
firewall-cmd --reload

Adding raw IPTables rules to firewalld

e.g. to accept all packet forwarding on the bridge interface:

firewall-cmd --permanent --direct --add-rule ipv4 filter FORWARD 0 -i br0 -j ACCEPT

or to allow all packets flowing over br0 and tap0:

firewall-cmd --permanent --direct --add-rule ipv4 filter INPUT 0 -i tap0 -j ACCEPT
firewall-cmd --permanent --direct --add-rule ipv4 filter INPUT 0 -i br0 -j ACCEPT

Neither of these commands should be necessary given the netfilter sysctl parameters tweaked earlier, but certain OpenVPN options (such as client2client) change the packet flow and cause packets to flow over the interface, get filters, then re-injected which could cause them to suddenly be affected by the iptables rules.

Recall that firewall-cmd --reload needs to be called before the permanent rules will take effect.

Debugging IPTables

The default iptables -L listing isn't very helpful when inserting/deleting rules by their chain offset. The following command lists all rules, numerically, and displays line numbers:

iptables --line-numbers -L -n -v

You can also log dropped packets for further troubleshooting (here limited to 1/s, inserted at position 15 which was the position before the DROP rules on my machine):

iptables -I INPUT 15 -j LOG -m limit --limit 60/min --log-prefix "iptables dropped: " --log-level 4

Configuring a client VPN connection using only NetworkManager

VPN_IFNAME=homelab
nmcli c add type vpn ifname $VPN_IFNAME vpn-type openvpn
nmcli c modify $VPN_IFNAME
set vpn.data dev = tap
set vpn.data ca = /path/to/copy/of/ca.crt
set vpn.data connection-type = password
set vpn.data remote = your.server.fqdn
set vpn.data comp-lzo = yes
set vpn.data username = your_user
set vpn.data connection-type = password
set vpn.secrets password = your_pw

'waiting for password' when connecting using Tunnelblock

When I was attempting to test my VPN connections using Tunnelblick on OS X, I experienced an annoying bug: When trying to connect, Tunnelblick would enter a 'Waiting for password' state, but never 'get' the password nor prompt for one. Log were misleading:

Tunnelblick: Obtained VPN username and password from the Keychain

No VPN password was stored in my keychain (verified using Keychain Access.app). Fortunately, this post on the Sophos community forums correctly identified the issue as a bug after having copied/renamed a Tunnelblick connection.

Tunnelblick's preference file needs to be adjusted in order to correctly prompt for a password again:

# from https://community.sophos.com/products/xg-firewall/f/124/t/75819
conname="homelab"
defaults delete net.tunnelblick.tunnelblick "${conname}-keychainHasPrivateKey"
defaults delete net.tunnelblick.tunnelblick "${conname}-keychainHasUsername"
defaults delete net.tunnelblick.tunnelblick "${conname}-keychainHasUsernameAndPassword"

Additional reading
